A Rear Headlight for the Planet 2

 Because the Planet 2 (with Mini Train Systems electronics*) is operated by a tethered controller, it is quite practical to run the loco in reverse with the driving car coupled to the front of the loco, but there is no rear light.

(* As I understand it, locos sold in the UK by Maxitrak have the controls inside the cab, so the driver need to be positioned to the rear of the loco and drive by reaching into the cab.)

To attach the rear light, I bent a strip of 20 x 1.6 mm aluminium to match the curve of the cab roof, and drilled 2 holes (4 mm dia.) so that it could be fixed in position using the rear fixing bolts for the cab roof.  This avoided the need to drill additional holes on the cab roof.  I then formed some brackets to suit the light mount, which is via an M5 bolt and nut (supplied).

I found the light on eBay, and it is a Chinese made headlight intended for electric bicycles.  The cost from an Australian suppliers was about $20.  The light operates over a wide range of voltage 6-60 V DC.  With some assistance from Mini Train Systems, I should be able to wire it in to the loco control unit so it can be controlled from the tethered controller.  For initial testing, I wired the cable supplied with the light to a 30/50A Anderson connector and plugged it into the battery charging terminals.

Revised Mainline Alignment

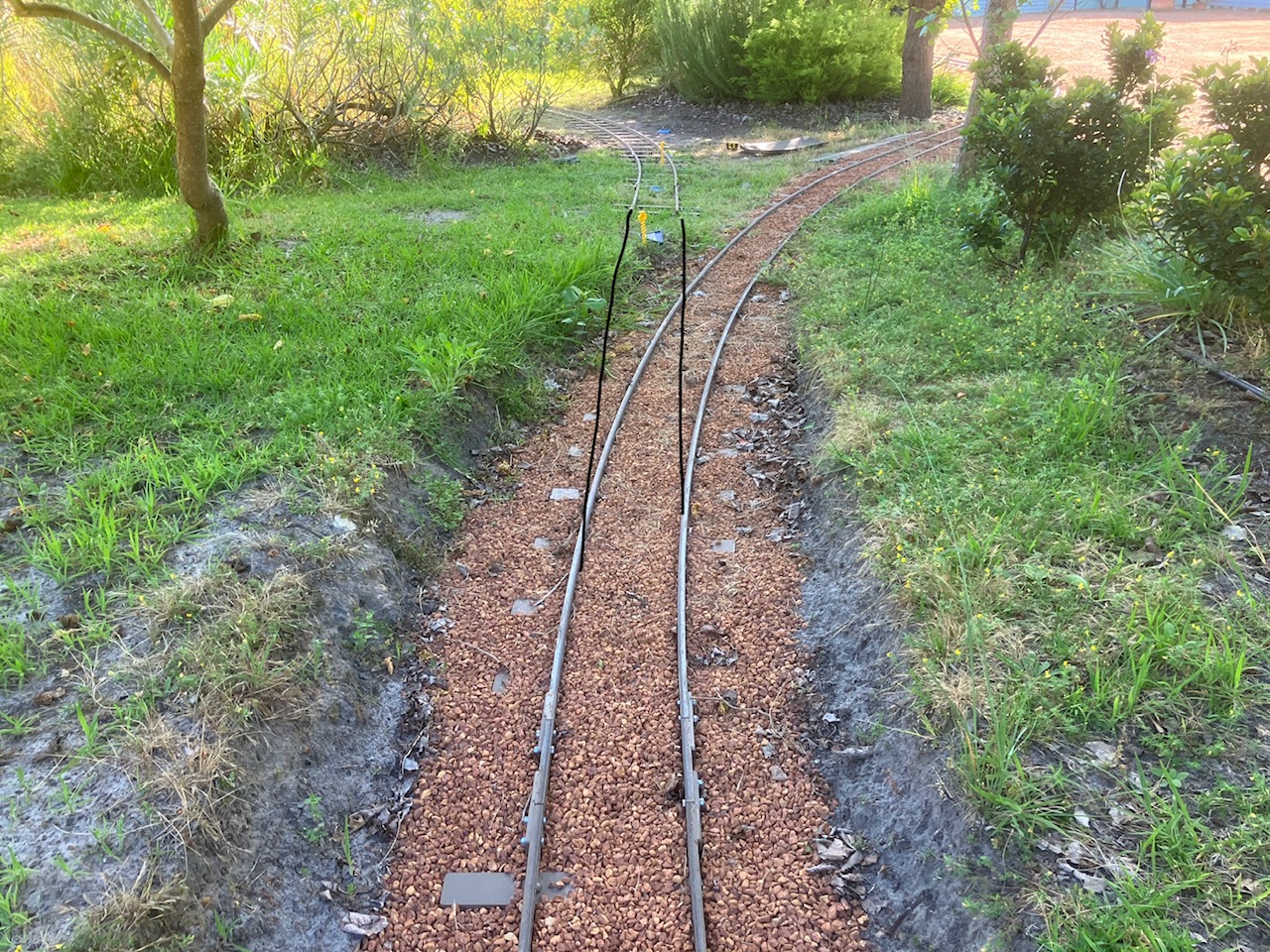

I set out some spare track pieces to test an idea for the next stage of trackwork.

A new point, currently on order, will branch off the current track, to form the start of the main line which will ultimately loop right around the garden. The existing track heading to the right will remain as a spur leading to the garage for train storage. Previously, the start of the main line was about 20 m closer to the garage.

Visible at the bottom of the photo below are the 170 mm long filler pieces supplied by Mini Train Systems to allow for future installation of a point in the middle of a curve, because a point is a bit longer than an equivalent 15° curve section. I originally installed the filler pieces in this location with a different plan in mind, so it is good luck that the new point will fit here.

After curving to the left, the new main line will punch through a gap to be cut in the hedge, passing by the gazebo in the background which will double as a station shelter.

The revised alignment will require about 20 m of additional straight track.  Fortunately, I was able to add this to the current order which is expected to be delivered during December 2023.  The length of the main loop will be unchanged, at about 300 m.

Below is the revised track plan:

Expanding the Wagon Fleet

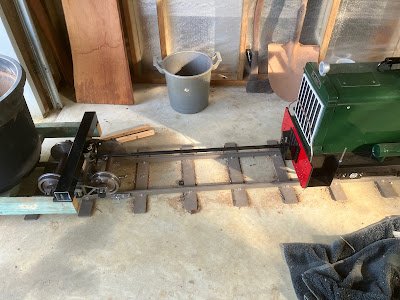

 A new pair of bogies arrives from DNC!

I fitted the new bogies to the driving wagon, which now has the handbrake operating on both bogies.

For the first time, there are two bogie wagons operational.

I also fitted new bolsters to the ballast wagon so it could ride on bogies when required for ballasting duties.  The bogies from the utility flat wagon will be transferred to the ballast wagon when needed.

The wooden frame for the ballast wagon received a coat of paint as well.  Additional spacers can be added between the steel bolsters and wooden frame, if required, to fine tune the clearance between the discharge openings and the rail, which determines the quantity of ballast delivered.

A Utility Wagon

 As it seems delivery of gondola wagons from Mini Train Systems is still some way off, I had been thinking about building another interim wagon to use, especially as the pair of bogies I had ordered from DNC were due to arrive soon.

After figuring out a design in my head one afternoon, I started work and had the wagon built by the following afternoon.  The 2 m long timber frame is pine, left over from the pallets used for the track shipment.  As with the driving wagon, the bolsters are 50 x 50 steel from a spare fence post.  The floor is melamine coated chipboard from a former potting bench which we dismantled some time earlier.

Ready for its first test run.

After a coat of paint and some additional seating.

The wagon frame: mostly timber.
